EMP JAMMER

-
EMP JAMMER :

HELLO FRIENDS I AM KUNAL AND TODAY WE ARE GOING TO MAKE ANOTHER PROJECT THAT IS AN EMP GENERATOR/JAMMER.

SO LET'S GET READY

TO MAKE THIS WE NEED SOME EQUIPMENTS :

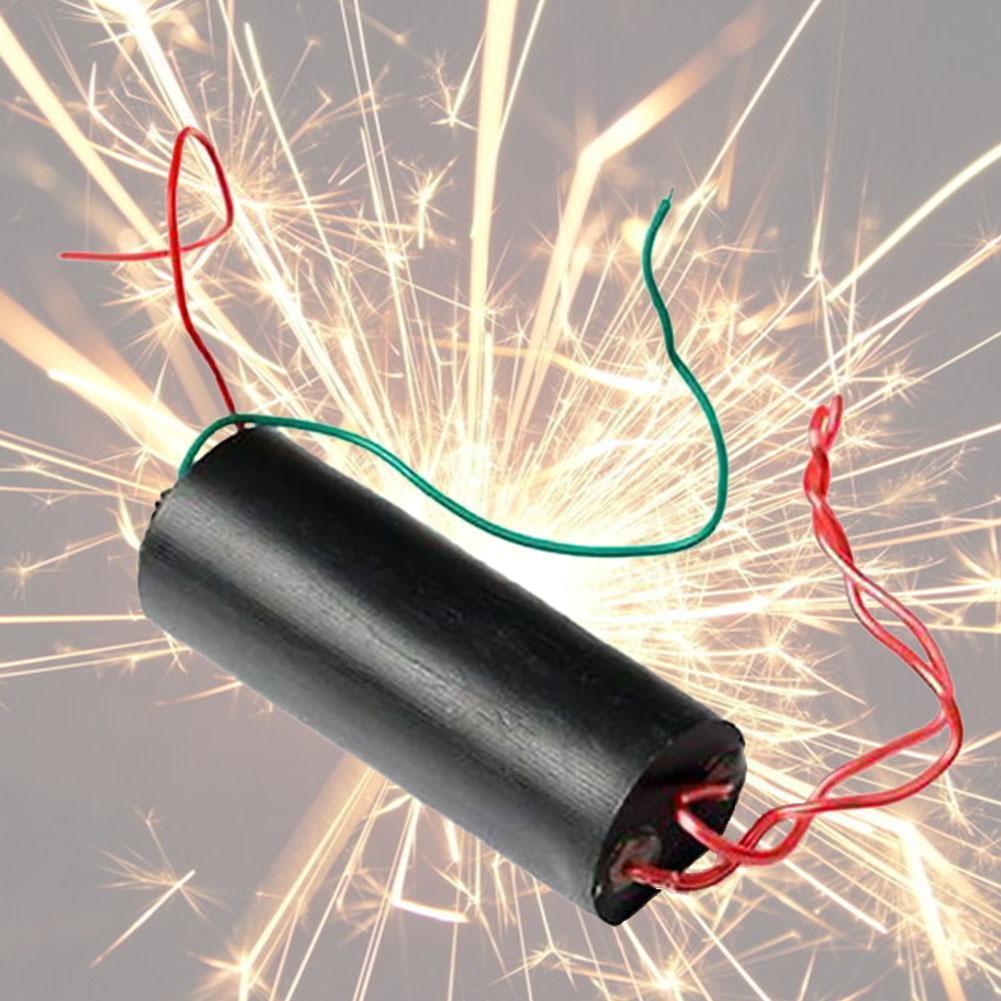

1. HIGH VOLTAGE GENERATOR
Image result for high voltage generator uses

  The high-voltage generator drives a power transistor based on self-excited oscillation, which converts DC to AC. A high-frequency transformer with high turns ratio is used to increase the voltage. This high voltage will be induced to create a strong electromagnetic pulse, which will stop other circuits in its range from working.

TO BUY THIS PRODUCT CLICK ON:
https://www.amazon.in/gp/product/B0769HW8NH/ref=as_li_tl?ie=UTF8&camp=3638&creative=24630&creativeASIN=B0769HW8NH&linkCode=as2&tag=kunnu31-21&linkId=a8e8159993ce5ad2ae0bfb2ee3dfc29c

OR

https://amzn.to/2EqwOfU

2. MAGNETIC WIRES ( COPPER WIRES)

Image result for COPPER WIRE
Magnet wire or enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.
This will create an electromagnetic field which would be used for the purpose of jamming a device.

TO BUY THIS PRODUCT CLICK BELOW:
https://www.amazon.in/gp/product/B07K61SSBS/ref=as_li_tl?ie=UTF8&camp=3638&creative=24630&creativeASIN=B07K61SSBS&linkCode=as2&tag=kunnu31-21&linkId=501e0f9c23e70ce8b37ddecbecc63e4e

OR

https://amzn.to/2Tg1quH

THIS IS THE BLOCK DIAGRAM OF THE PROJECT WHICH YOU CAN USE TO PREPARE THE PROJECT ON YOUR OWN.




NOTE : FOR THE COIL ONLY USE 18 GAUGE WIRES ELSE THE WIRE WOULD START LEAVING THE ENAMEL COATING.

WARNINGS :
1. DO NOT TOUCH THE COIL WHILE THE CURRENT FLOWS THROUGH THE CIRCUIT.
2. DO NOT PROVIDE MORE THAN 7.4 V TO THE HIGH VOLTAGE GENERATOR ELSE IT MAY STOP WORKING.

     HERE'S A VIDEO TO SHOW THE WORKING.


TO BUY THIS PRODUCT  CONTACT ME AT : 9304251433
